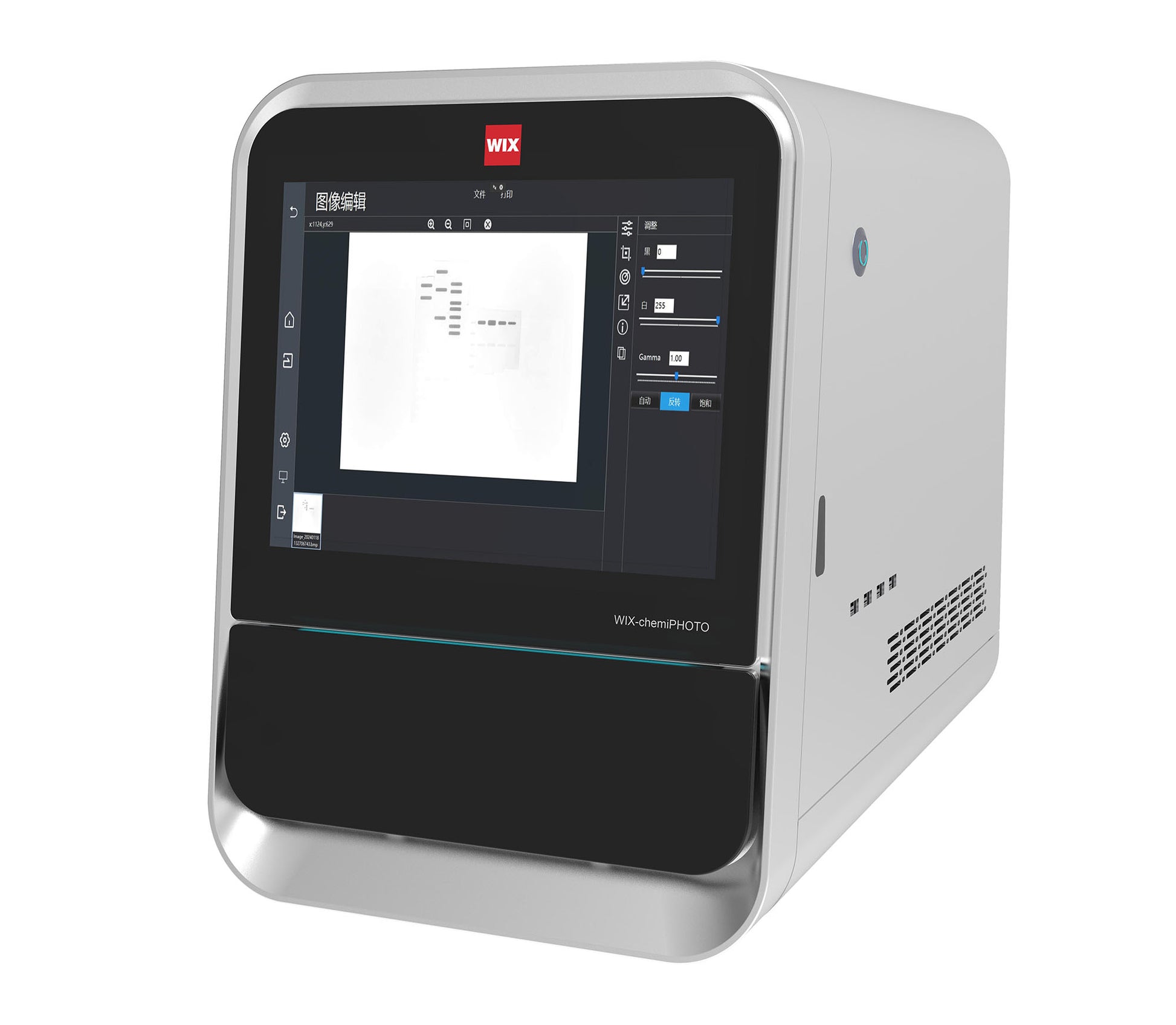

WIX-chemiPHOTO Chemi Imaging System
WIX-chemiPHOTO Chemi Imaging System
WIX-chemiPHOTO Chemi Imaging System
Features
Ultra-low cooling temperature for extremely low image noise.
Well-known cutting-edge lens with large aperture, auto focus and aperture adjustment.
Built-in computer, automatic door, open and close the door without touching it with gestures to avoid cross contamination.
12.1 inch capacitive touch LCD screen.
Double layer light avoidance structure for effectively elimination of background stray light.
Specifications
| Model | WIX-chemiPHOTO Chemi imaging system |
| Sensor model | SONY IMX492 |
| Sensor size | 4/3 inch |
| Pixel size | 4.63µm x 4.63µm |
| Effective resolution | 4164x2796 |
| Maximum image area | 10x14cm |
| Image resolution | 11.7 MP, 46.8 MP (Extended Pixel Mode) |
| Exposure time | 60μs-3600sec |
| Shutter type | Electronic Rolling Shutter |
| Lens aperture | F0.95 |
| Excitation source | Double LED white light |
| Screen size | 12.1 inch capacitive touch LCD screen |
| Quantum efficiency | 90% (peak) |
| Full Well Capacity (1×1, 2×2, 3×3) | 65ke- |
| A/D | 14bit |
| Readout Noise | 1.6-1.2e- @High gain mode 6.9-5.2e- @Low gain mode |
| Dark Current | 0.002e- /pixel/sec@-20℃ 0.005e- /pixel/sec@-20℃ |
| Cooling System | Dual Stage TEC cooler, about -35℃ below ambient |
| Optic Window Type | AR+AR High Quality Multi-Layer Anti-Reflection |
| Dimensions (mm) | 320×500×430 (L×W×H) |
