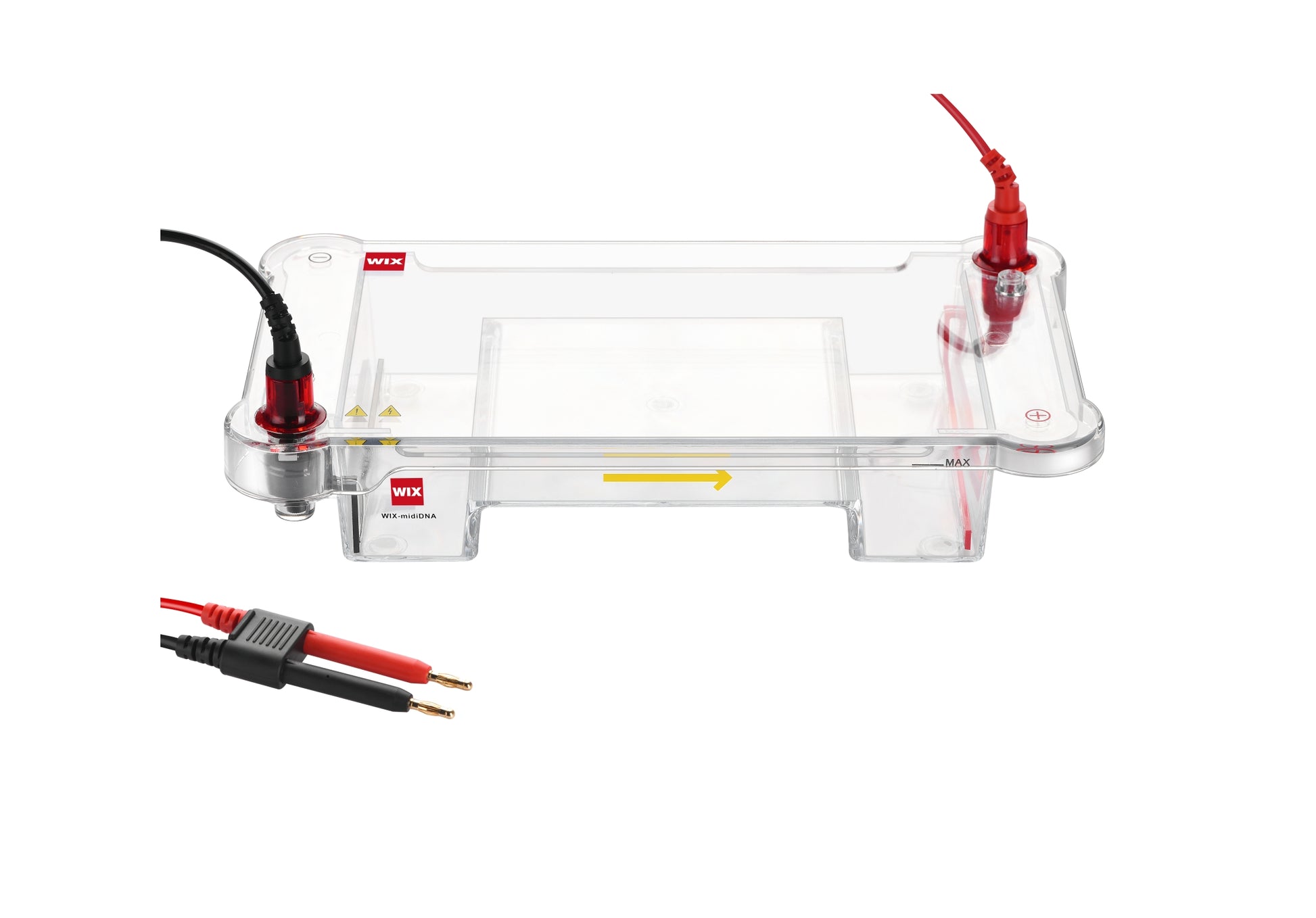

WIX Technology
Features
◆ PCR electrophoresis:comb 27 wells*4 rows, 108 samples are available (including maker)

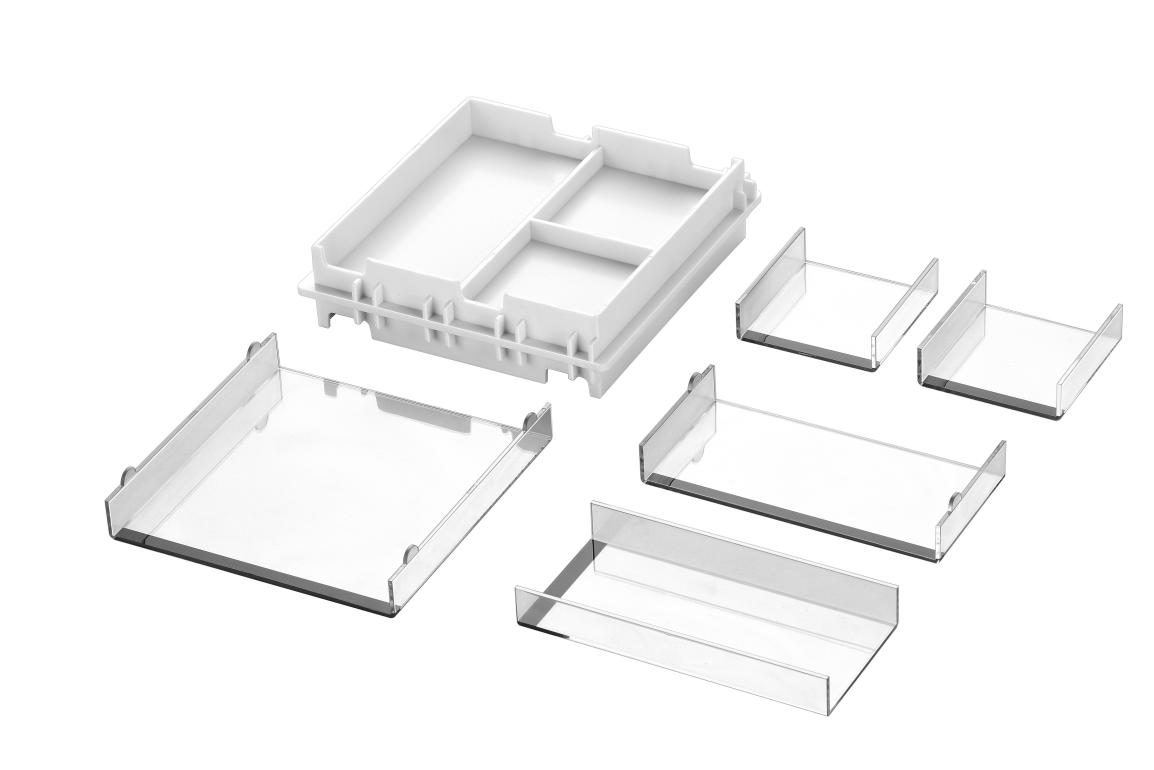

◆ Multi-specification gel tray: 30×130mm; 130×65mm; 65×130mm; 65×65mm;
Technical parameter
◆ Gel area: 130×130mm, 130×65mm, 65×130mm, 65×65mm
◆ Comb specification: 0.75mm: 7+7wells/14wells, 9+9wells/19wells;
1.0 mm: 12+12wells/27wells
1.5mm: 7+7wells/14wells, 9+9wells/19wells;
2.0mm: 3+2wells/3+3wells
◆ Buffering liquid volume: 1000ml
◆ Dimension: 300×170×80mm (L×W×H)
◆ Weight: 1.1Kg
