WIX Technology

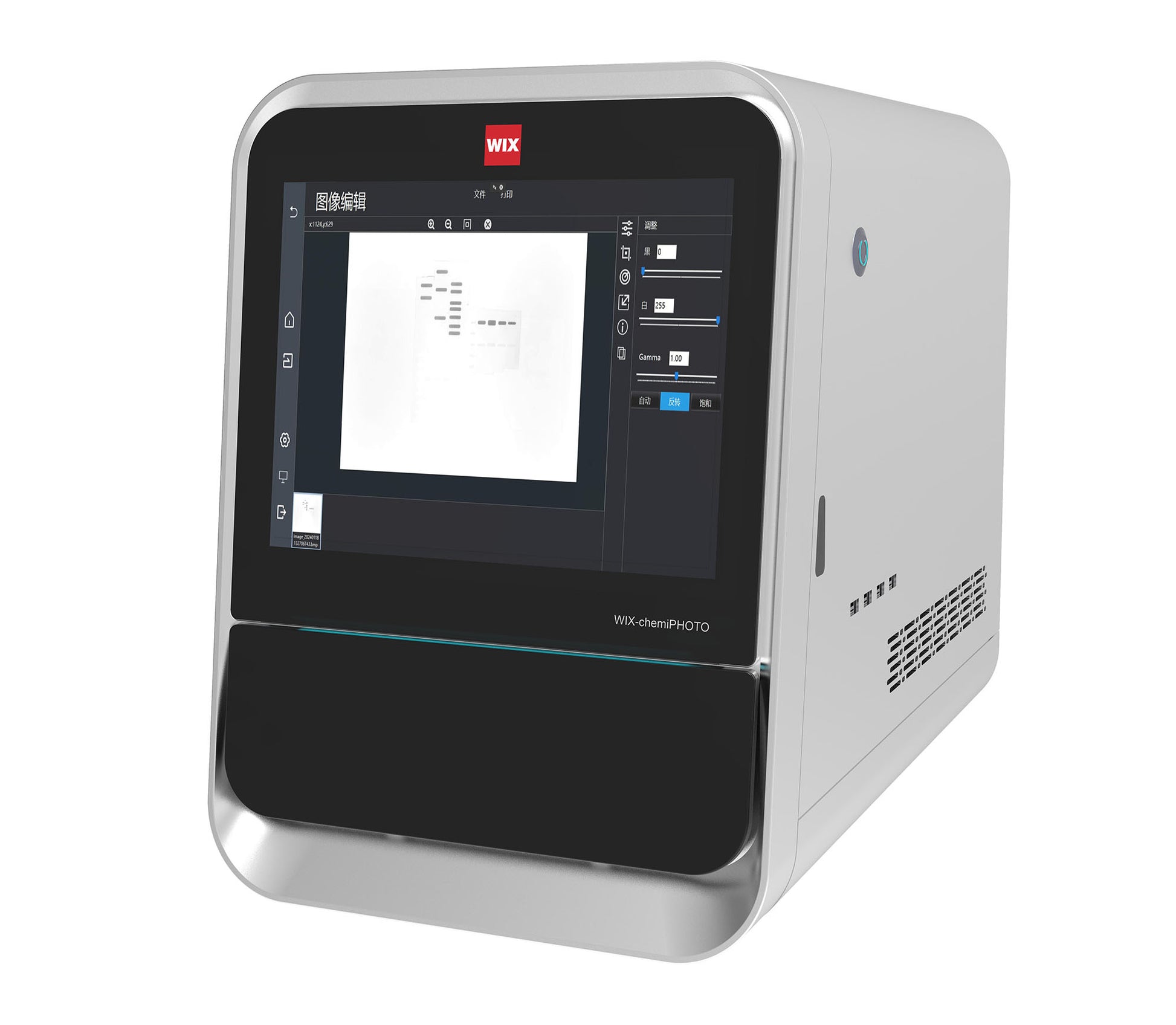

WIX-multiPHOTO Multi-functions Gel Doc
WIX-multiPHOTO Multi-functions Gel Doc
WIX-multiPHOTO Multi-functions Gel Doc
Features
All-in-one flexible imaging — chemiluminescence and UV gel imaging.
Built-in computer, 15 inch capacitive touch LCD screen.
Ultra-low cooling temperature for extremely low image noise.
Well-known cutting-edge lens with large aperture, auto focus and aperture adjustment.
Multi-functions, with various excitation light source and unique emission filters, meet different experimental.
Double layer light avoidance structure for effectively elimination of background stray light.
Automatically turn off the UV to avoid personnel injury.
Specifications
| Model | WIX-multiPHOTO Multi-functions Gel Doc |
| Sensor model | SONY IMX492 |
| Sensor size | 4/3 inch |
| Pixel size | 4.63µm x 4.63µm |
| Effective resolution | 4164x2796 |
| Maximum image area | 10x14cm |
| Image resolution | 11.7 MP, 46.8 MP (Extended Pixel Mode) |
| Exposure time | 60μs-3600sec |
| Shutter type | Electronic Rolling Shutter |
| Lens aperture | F0.95 |
| Excitation source | Double LED white light |
| Screen size | 15 inch capacitive touch LCD screen |
| Quantum efficiency | 90% (peak) |
| Full Well Capacity (1×1, 2×2, 3×3) | 65ke- |
| A/D | 14bit |
| Readout Noise | 1.6-1.2e- @High gain mode/6.9-5.2e- @Low gain mode |
| Dark Current | 0.002e- /pixel/sec@-20℃/0.005e- /pixel/sec@-20℃ |
| Cooling System | Dual Stage TEC cooler, about -35℃ below ambient |
| Optic Window Type | AR+AR High Quality Multi-Layer Anti-Reflection Coating |
| Transmission UV | 365nm/302nm |
| Blue wavelength | 470nm |
| Emission filters | 3 included (standard), 5 optional |
| Dimensions (mm) | 405×680×550 (L×W×H) |
