WIX Technology

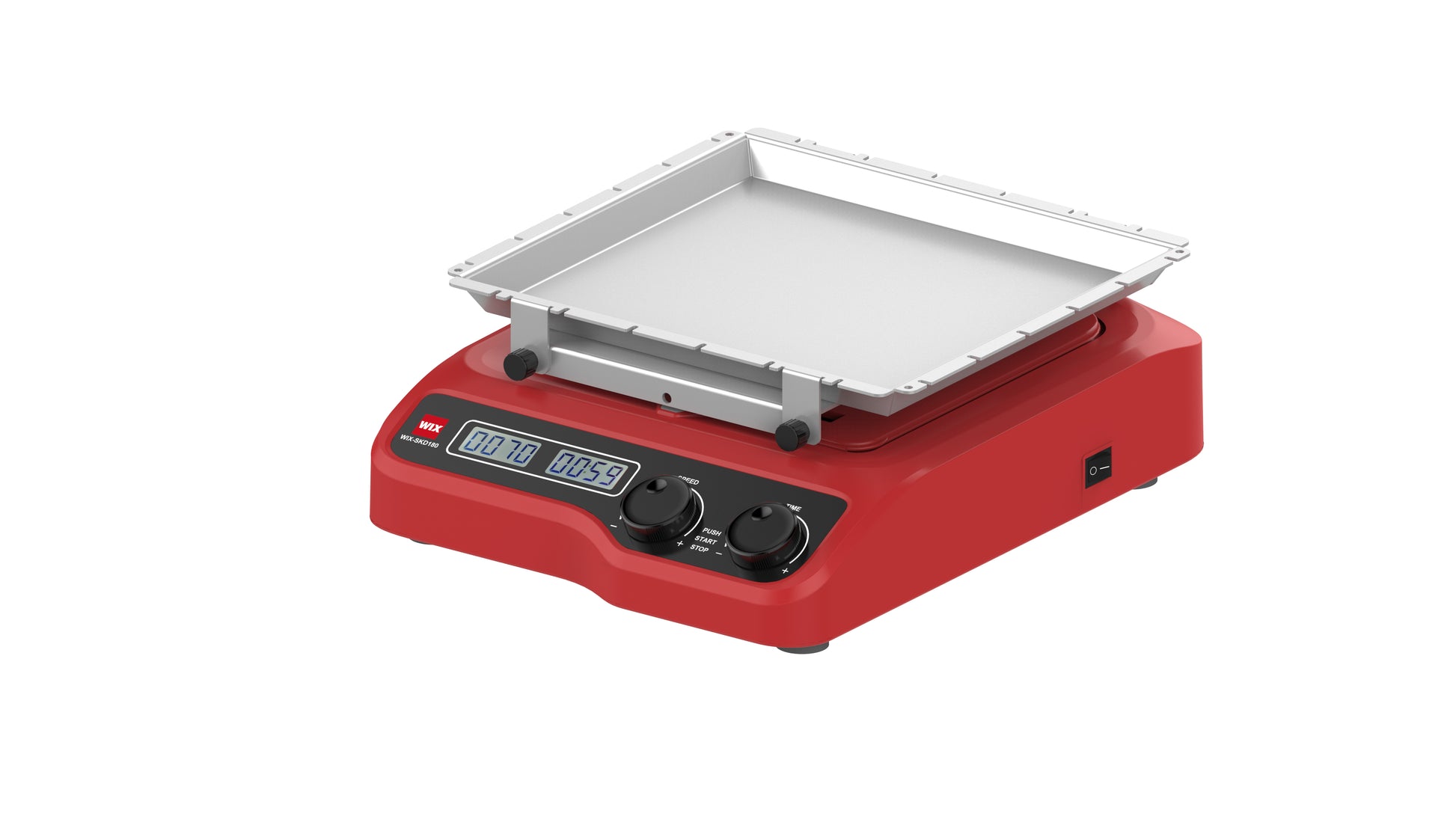

WIX-SKL180 NC Linear Shaker
WIX-SKL180 NC Linear Shaker
Features
1. Maximum load-bearing weight: 3kg (including fixtures)
2. Speed range: 40~200rpm
3. Time range: 00:01~19:59 (h:min)
4. Dual LCD screens show time and speed separately
5. A variety of brackets and fixtures are available
Technical Parameters
1. Amplitude: 20mm
2. Maximum load: 3kg
3. Motor type: DC motor
4. Speed range: 40~200rpm
5. Operation mode: timing/continuous operation
6. Speed display: LCD
7. Timing display: LCD
8. Time setting range: 00:01~19:59 (h:min)
9. Voltage: 100~240V, 50/60Hz
10. Power: 20W
11. Weight: 3.2kg
12. Allowable ambient temperature and humidity: 5~40oC, 80%
13. Pallet size: 247×267
14. Dimensions (length x width x height): 335×270×110mm
